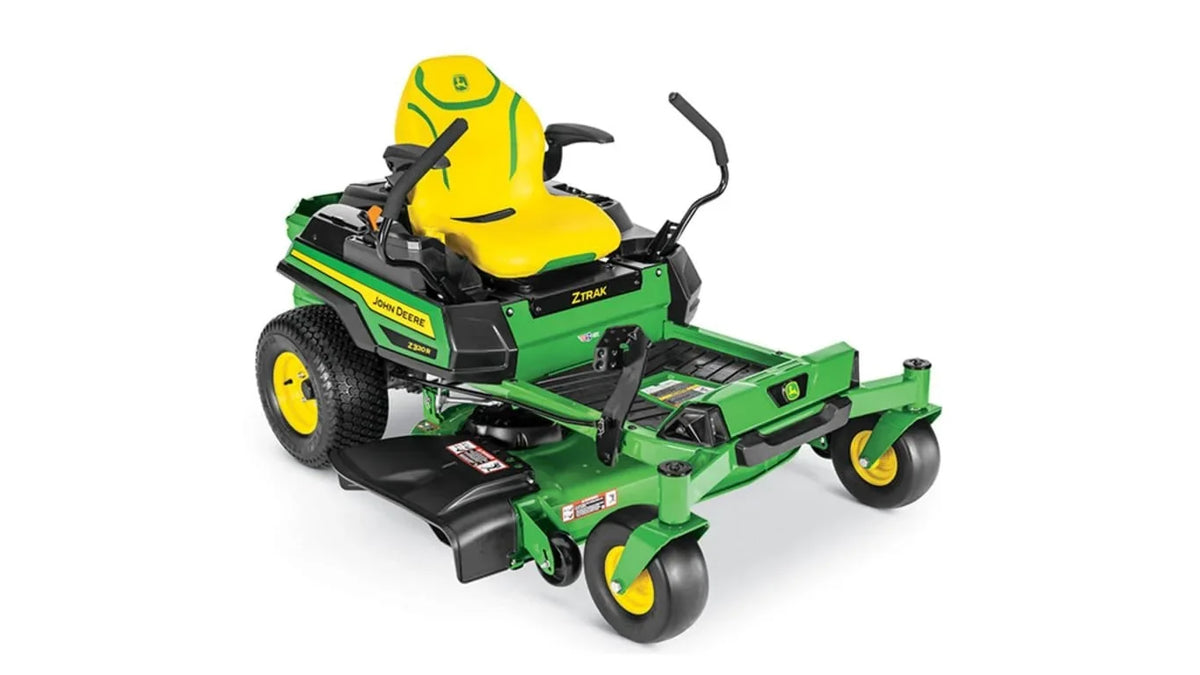

Z20R ZTrak Zero-Turn Mower - 107 Cm Steel Deck | John Deere ^Sale

Primary Function

The John Deere Z20R ZTrak zero-turn mower is engineered for aggressive turf clearing on expansive residential landscapes, delivering a 107 cm swath of cut guided by a 21.5 HP Kawasaki FR651V engine capable of forward speeds reaching 11.3 km/h. This unit supports utility applications by hauling loads up to 113 kg and remains operational in darker environments thanks to a mounted light kit. Customization for clippings disposal is available through an optional MulchControl™ attachment or a two-bag material collection system with 229 L capacity.

Materials & Safety

Construction features a rigid skeleton formed from 5 cm steel tubing wrapped in e-coat primer and powder coating, protecting the internal mechanics from environmental exposure. The cutting head utilizes a 12-gauge steel Accel Deep™ deck resistant to structural flex and debris impact. Drive dynamics depend on a Hydro-Gear EZT-C dual hydro transmission to manage hydraulic flow independently to each rear wheel. Safety architecture incorporates an operator presence sensor that kills ignition when the seat is vacated and engages a park brake interlock when the parking latch is released. Ergonomic controls combine twin steering levers with a foot-lift deck adjustment system and a preset dial for rapid blade height transitions. Additional interior amenities include a 51 cm high-back cushion with armrests, a rubberized floor mat, and a covered storage compartment.

Specifications

• Engine Configuration: 726 cc overhead-valve V-twin producing 16.0 kW; 2.1 L oil capacity.
• DIMENSIONS: Accel Deep mower deck specifications list a 107 cm width with cut levels spanning 3 mm to 113 mm in 4 mm increments.
• Travel Performance: Forward max 11.3 km/h; reverse max 5.6 km/h.
• TIRES: 11×6-5 front casters with sealed ball bearings; 18×8.5-8 rear drive tires.
• Physical Size: 1915 mm overall length; 1280 mm total width; 1255 mm wheelbase.
• WeighTS: 260 kg dry mass; seat fore-aft travel allows 7 cm positioning adjustment.
• Fuel SYSTEM: 11.4 L translucent tank with float-level indicator; 12 V 300 CCA battery.
• Compliance: Rated for slopes up to 13 degrees; includes tilted-platform automatic shutdown.
